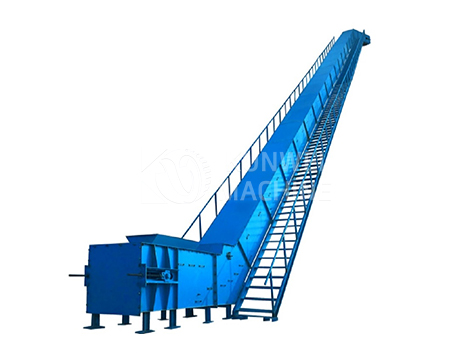

Closed large-inclination belt conveyor

I. Closed Large Inclination Belt Conveyor Product Introduction:

With the demand for national environmental protection, every industry is focusing on environmental protection, especially in the industrial and mining industry dust pollution, belt conveyor as industrial and mining industry production line supporting equipment, in the process of conveying dry materials, it will cause the site to have dust pollution, but also affects the workers’ work and health, so the closed belt conveyor came into being. The use of closed large inclination belt conveyor for material transportation, try to do not raise dust, does not affect the surrounding environment.

Second, closed large inclination belt conveyor product features:

1、 closed can be effective dust, wind, sun, rain, etc., environmental protection and at the same time extend the service life of the conveyor belt.

2、Large conveying capacity, simple structure.

3、Easy maintenance, standardization of components.

4、According to the requirements of conveying process, it can be single conveyor or multiple units.

5、 compared with other conveyor noise is small, suitable for the working environment requires quieter occasions.

Third, the closed large inclination angle belt conveyor scope of application:

Henan Kunwei machinery in the manufactured belt conveyor, the most skillful conveying equipment is the large inclination belt conveyor, in many industries around the country have Henan Kunwei machinery production of large inclination belt conveyor, large angle belt conveyor can be large angle conveyor or even vertical conveyor, has a large conveying capacity, covers an area of small, easy to maintain and so on, and therefore is widely used in coal, building materials, construction, metallurgy, Electric power, chemical industry and light industry and other industries.

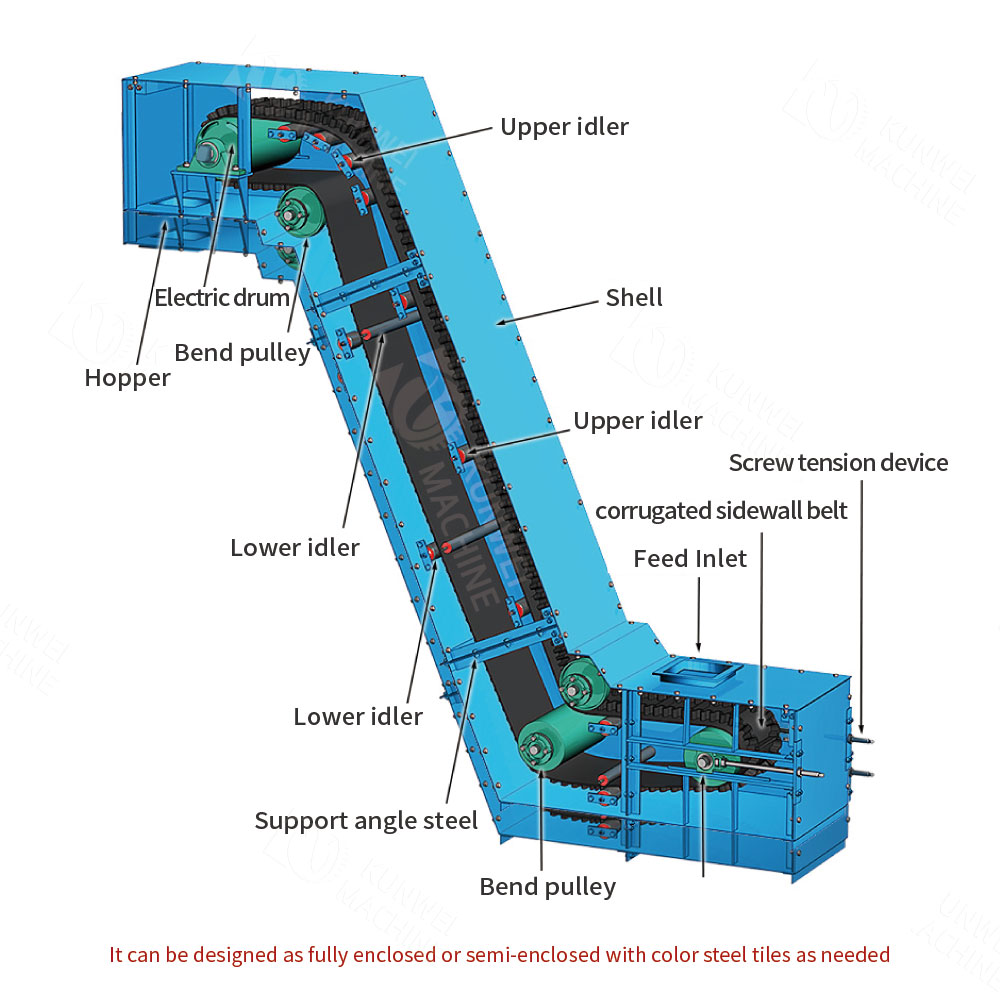

Closed large inclination belt conveyor structure composition:

Enclosed large inclination angle belt conveyor structure is in the flat rubber transportation belt on both sides of the rubber wave-shaped vertical skirt, between the skirt and sticky with a certain strength and elasticity of the transverse partition box-shaped bucket, so that the material in the bucket for continuous conveying in the conveyor belt is equipped with a dust cover.

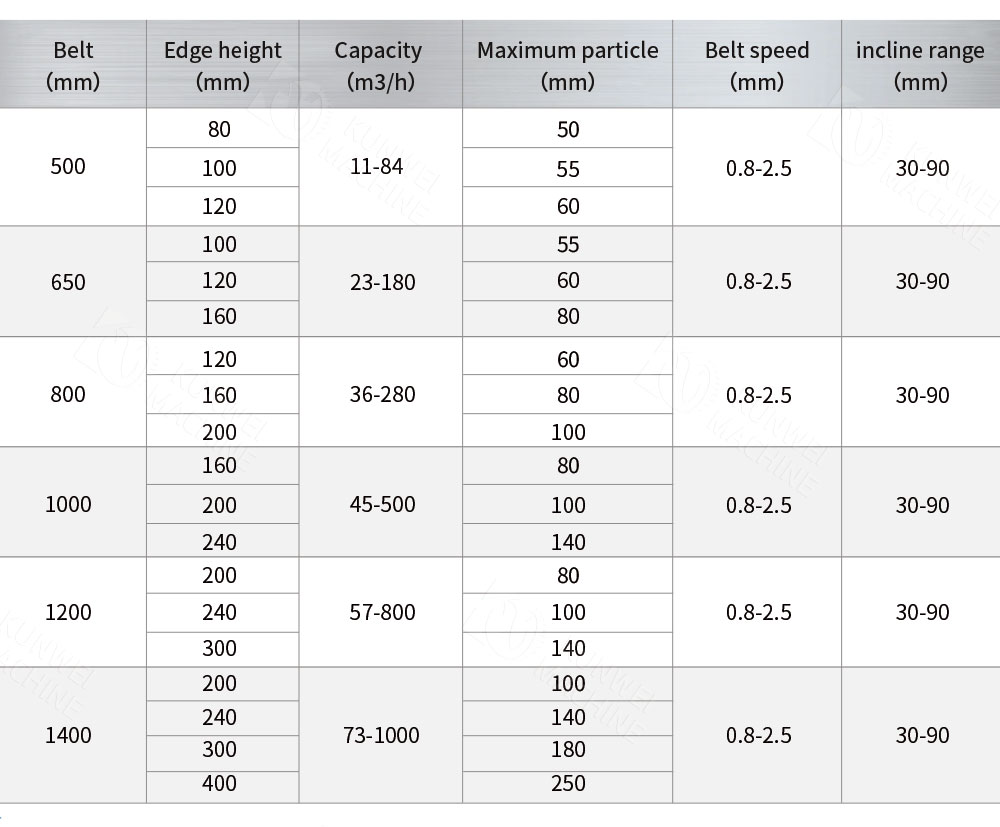

Fifth, enclosed large inclination angle belt conveyor specification model:
