Open type large inclination belt conveyor

First. Open type large inclination angle belt conveyor product introduction:

Large inclination angle flanged belt conveyor is divided into closed and open type according to whether it is sealed or not. Open type large inclination belt conveyor has a lot of advantages in the process of using, has the advantages of general belt conveyor structure is simple, reliable operation, easy maintenance, etc., can be conveyed at a large angle of inclination, compact structure, occupies an area of less, in recent years in the direction of large lifting height, the development of large conveying capacity, the application of a wider range.

Second, open type large inclination angle belt conveyor features advantages:

1, large conveying angle, the maximum can reach 90 degrees, is the ideal equipment for large inclination angle conveying and vertical conveying, so it can save floor space, save equipment investment and civil construction costs, and achieve good comprehensive economic benefits.

2,Simple structure, its components are few, strong versatility, easy for standardized production, and can be combined and assembled as needed, and because of the simple structure, reliable operation, high efficiency, easy to realize automation.

3,Reliable operation. Due to the simple structure, light weight moving parts, as long as the conveyor belt is not damaged, the life is relatively long; metal structural components, as long as the rust-proof good, not easy to be damaged; wearing parts of the roller damage, replacement, maintenance is more convenient and quick.

4,low energy consumption, high efficiency. Due to the light weight of the moving parts, the invalid capacity is less, the belt conveyor has low energy consumption and high efficiency.

5,Wide range of conveying materials. It can convey all kinds of bulk material, block material, cement, solid waste and concrete.

6, can be set in the head and tail of any length of the horizontal conveying section, easy to connect with other equipment.

Third, the open type large inclination angle belt conveyor is applicable:

It can be widely used in coal, building materials, construction, metallurgy, electric power, chemical industry, etc.; it can convey all kinds of bulk materials with stacking density of 0.5-2.5t/m3 within the ambient temperature range of -25-40℃; the maximum conveying angle of inclination is 90°, and the maximum block size of conveyed materials is 80mm; when conveying materials with special requirements, it is necessary to use corrugated baffle conveyor belts with special materials.

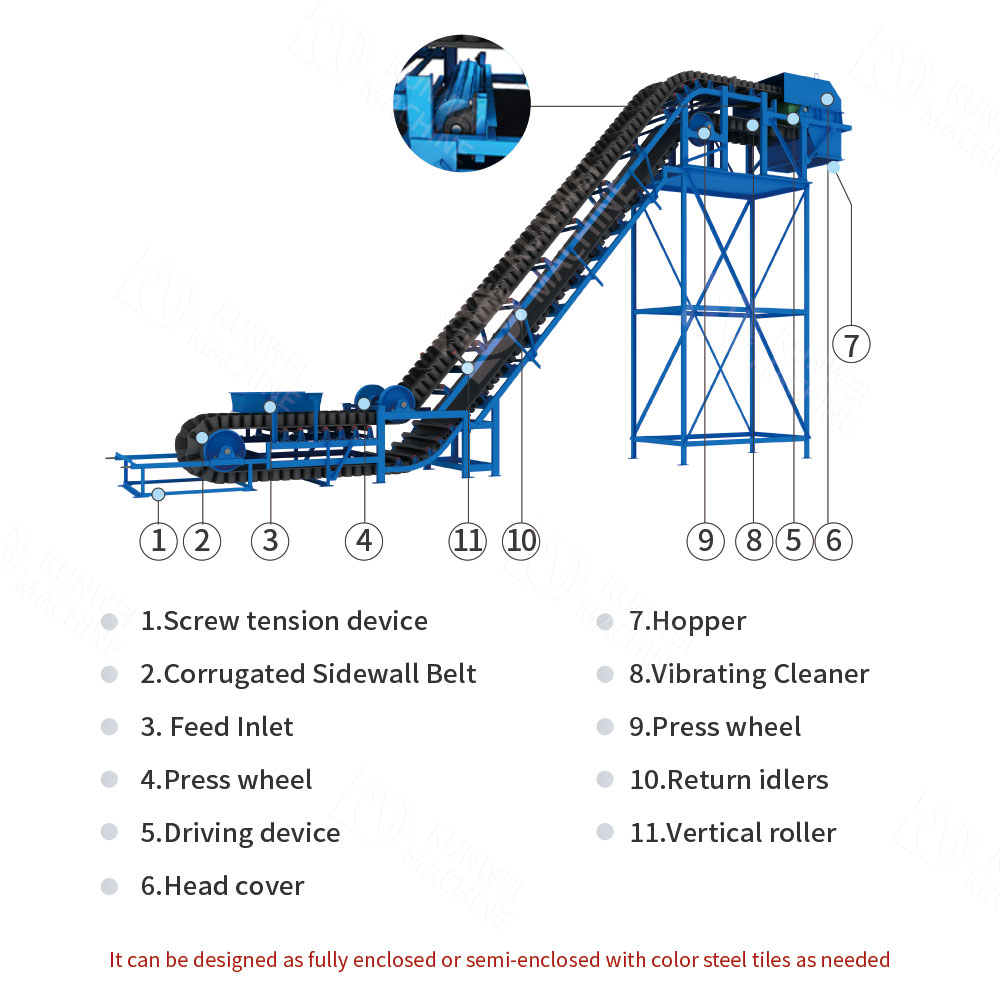

Fourth, the open type large inclination belt conveyor composition and structure:

Open type large inclination angle belt conveyor mainly consists of head funnel, drive roller, slap cleaner, edge conveyor belt, pressure belt wheel, block roller, upper roller, reversing roller, lower roller, guide trough, empty section cleaner, tail roller, tensioning device and other parts.

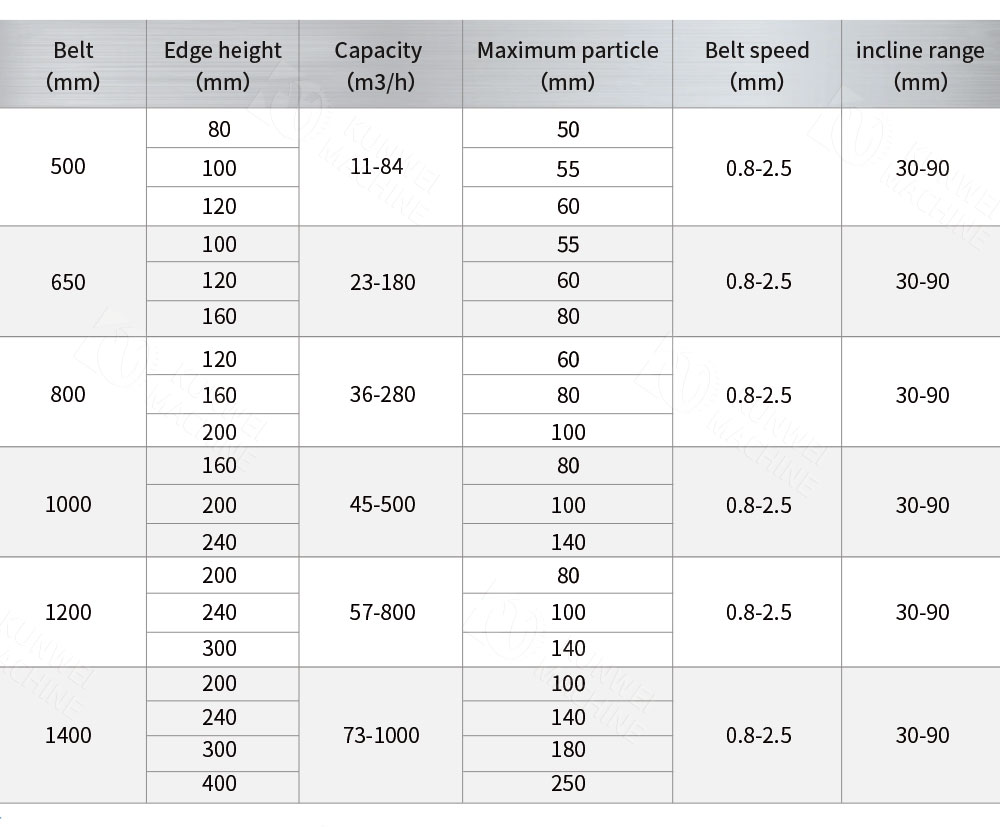

Fifth. Model parameters of open type large inclination belt conveyor:
