Reversible Shuttle Belt Conveyor

First. Reversible bins matching belt conveyor introduction:

Reversible bins matching belt conveyor, in principle, belongs to one kind of belt conveyor, and is a complete belt conveyor. As to why it is called reversible distribution warehouse, we can literally know the reason. Reversible, means that the belt conveyor can travel back and forth, binning, mainly for the lower bin fabric. So this reversible bins belt conveyor is the purpose is more clear. Reversible bins belt conveyor due to large conveying capacity, low operating costs, so in terms of application is more extensive, reversible bins belt conveyor is reciprocating walking conveyor; reversible bins belt conveyor in the use of the effect and unloading trolleys are similar to the belt conveyor below the silo for the use of fabric. Reversible bins belt conveyor operating conditions for positive and negative head and tail two-way discharge, drive mode can be used single drive, head and tail double drive two ways; reversible bins belt conveyor is the whole mobile, need to calculate the walking drive power, equipped with walking drive device.

Second. the reversible distribution belt conveyor product advantages features characteristics:

1,Discharge point can be moved to realize continuous multi-point discharge.

2,Bidirectional operation realizes bidirectional unloading.

3,The height of the whole machine is reduced, applicable to the unloading truck can not be used occasions.

Third. reversible bins belt conveyor scope of application:

Reversible silo belt conveyor can maximize the use of silo or storage yard volume due to its positive and negative head and tail unloading, and can be moved longitudinally for continuous unloading, is widely used in metallurgical plants, electric power, chemical plants, and coal and other industries.

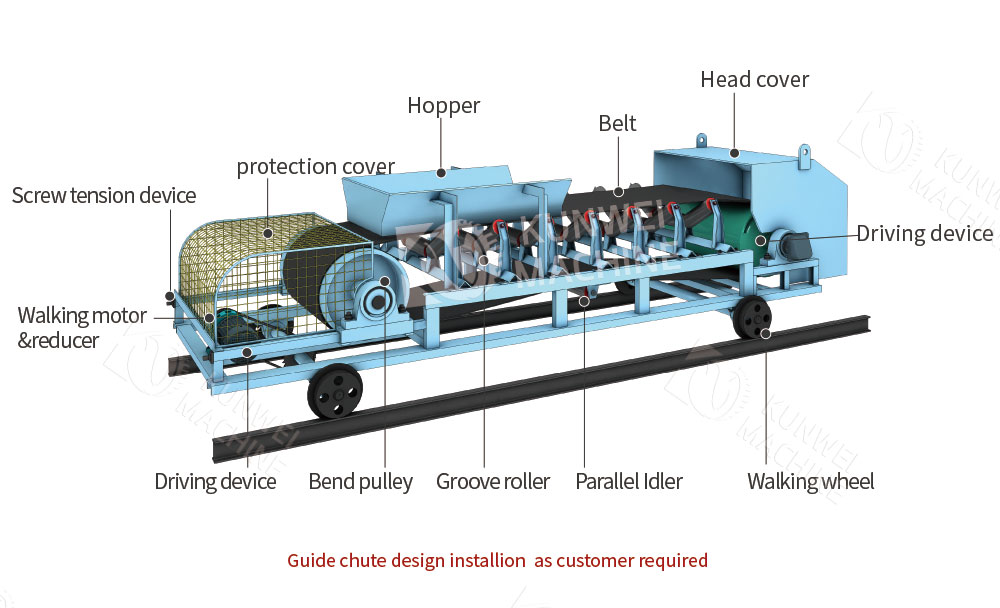

Fourth. reversible silo belt conveyor structure:

Reversible silo belt conveyor walking device and belt conveyor itself are two independent systems. When using, pay attention to the walking device belt speed selection. Usually the belt speed is selected according to the size of the amount of fabric. As for the composition of the components of the reversible warehouse, basically the same as the belt conveyor, the structure is composed as follows:

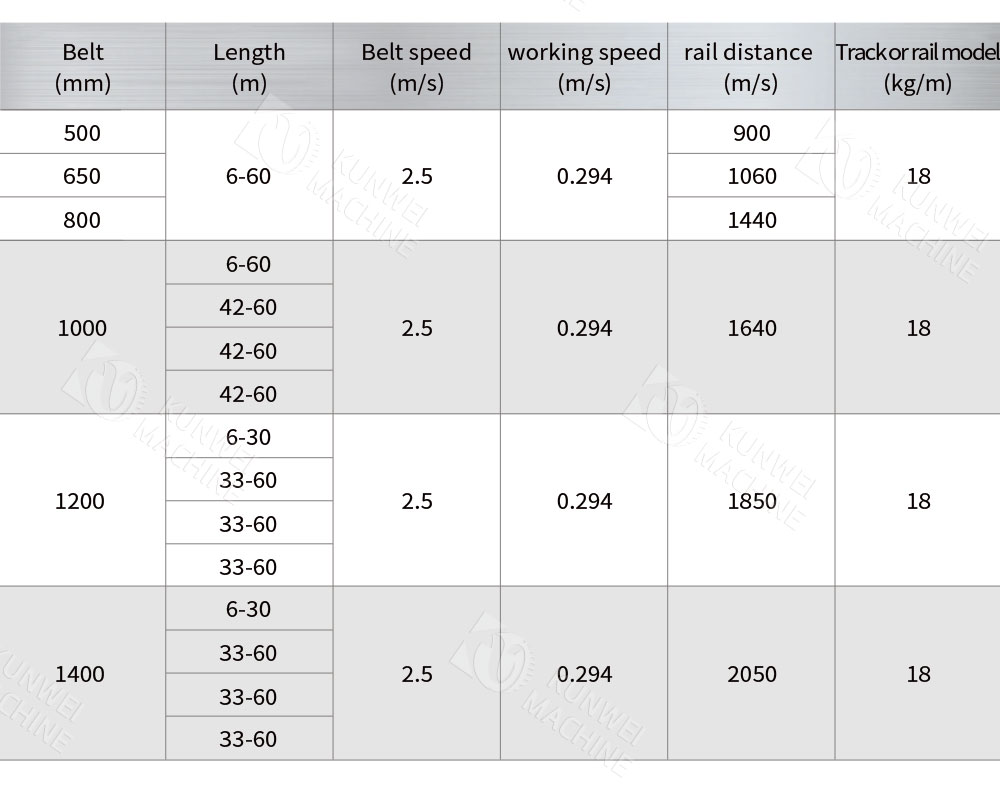

Fifth. Reversible batching belt conveyor parameters:

Reversible batching belt conveyor is generally used for batching at the top of the silo, and its function is similar to that of electric unloading car. The newly developed reversible batching belt conveyor of Jinrui Machinery is divided into two kinds: light and heavy. The light type is suitable for transportation of all kinds of materials <1600kg/m3, especially <1300kg/m3. The heavy-duty reversible silo belt conveyor is suitable for transporting all kinds of materials from 1600 to 2500kg/m3, and its structure is divided into three kinds: integral type (L=6m, 9m), two-section trailer type (L=12m, 15m, 18m), and three-section trailer type (L=21m, 24m, 27m), etc., which are available for the design of model selection.
