Fabric unloading trolley
First. Brief introduction of fabric unloading trolley: Fabric unloading trolley is an independent conveyor unloading equipment on the belt conveyor, in the use of the process can be unloaded in any position in the middle of the belt conveyor, in the
First. Brief introduction of fabric unloading trolley:
Fabric unloading trolley is an independent conveyor unloading equipment on the belt conveyor, in the use of the process can be unloaded in any position in the middle of the belt conveyor, in the fabric unloading trolley there are two rollers, play a role for the conveyor belt guidance, unloading. Fabric unloading trolley cost is relatively high compared to other unloading equipment, but the conveyor is relatively large, so it is suitable for long-distance use on the belt conveyor, for multi-point flexible unloading.
Second, the main features of the fabric unloading trolley advantages
1. The overall structure is solid, can be flexible for multi-point material unloading.
2. High running speed, adapting to the high belt speed operation of the belt conveyor.
3. Large handling capacity, high working efficiency
4. Energy saving and consumption reduction, saving the investment of the site
Third.Scope of application of fabric unloading trolley:

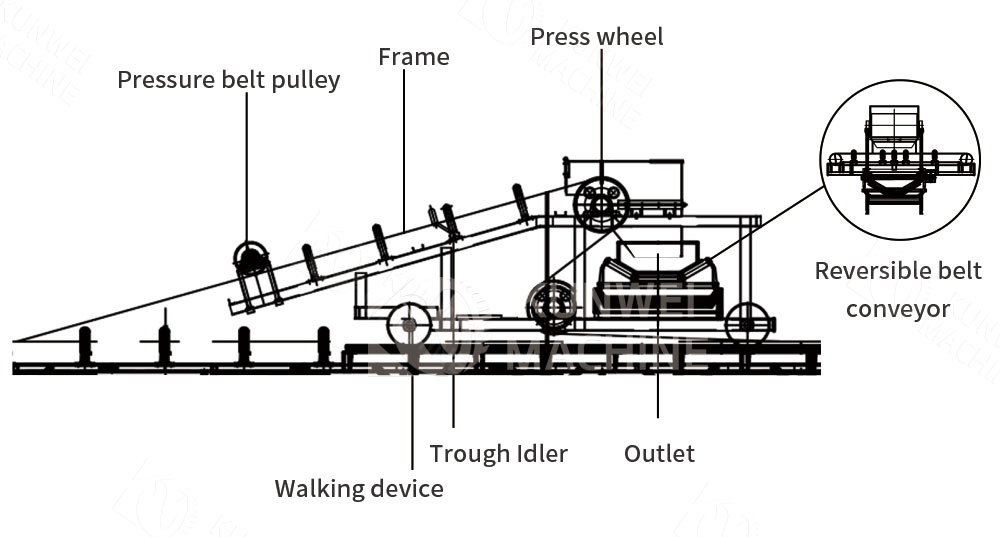

Fourth, the fabric type unloading trolley structure composition:
The main structure of the fabric unloading trolley consists of: driving device, frame, roller, roller, walking device, funnel and transverse fabric belt conveyor and other components.
Fifth, fabric unloading trolley working parameters:
Fabric unloading trolley is also divided into heavy and light, mainly according to the conveying capacity and unloading mode to distinguish. Heavy duty fabric unloading trolley is suitable for conveying materials with bulk density greater than 1600kg/m³, and can be unloaded at the same time on both sides or on one side; light duty fabric unloading trolley is suitable for conveying materials less than 1600kg/m³, and can only be unloaded on both sides at the same time. Fabric unloading trolley is connected with the belt conveyor in series, when a certain lifting height is reached, the material will flow through the tee to the gate valve at each place, when it reaches the specified position, it will start to unload.
