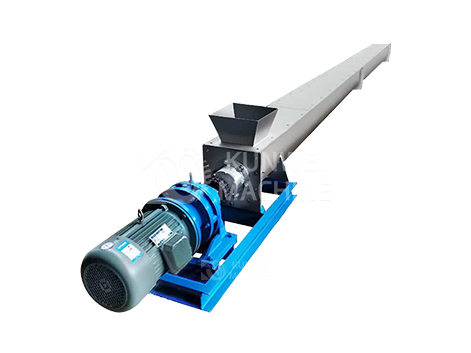

u-type screw conveyor

First. Product introduction of u-type screw conveyor:

The working environment temperature of u-type screw conveyor is usually -20～40℃, and the temperature of conveyed materials is usually -20～80℃. u-type screw conveyor is suitable for horizontal and small inclination arrangement, and the inclination angle is not more than 15 °. If the inclination angle is too big, please choose gx series pipe screw conveyor, or contact with the technical department of our company for individual design.

1, u-type screw conveyor screw diameter: 160, 200, 250, 300, 400, 500, 600, 700, 800, 900, 1000;

2, Ten standard revolutions (number/minute): 20, 30, 35, 45, 60, 75, 90, 120, 150;

3, screw machine length: from 3 meters to 30 meters, the length of the conveyor can be freely selected.

Second, u-type screw conveyor advantageous features:

Third, u-type screw conveyor application fields:

U-type screw conveyor has been widely used in building materials, metallurgy, chemical industry, machinery, light industry, etc. U-type screw conveyor is suitable for conveying powdery, granular, small lumpy materials, such as cement, fly ash, mineral powder, sand, soda ash, etc., and is not suitable for conveying materials that are easily deteriorated, viscous, and easy to be caked.

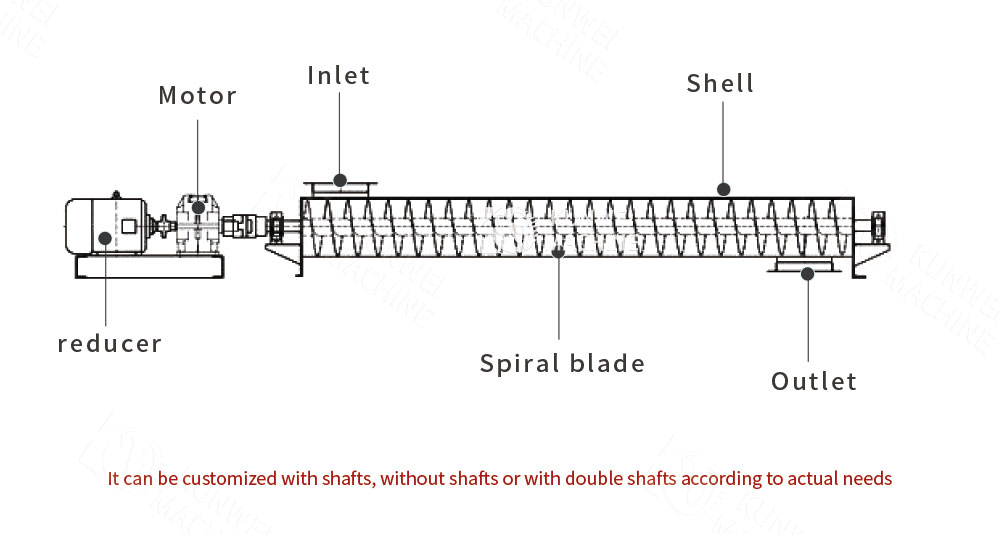

Fourth, u-type screw conveyor product structure diagram:

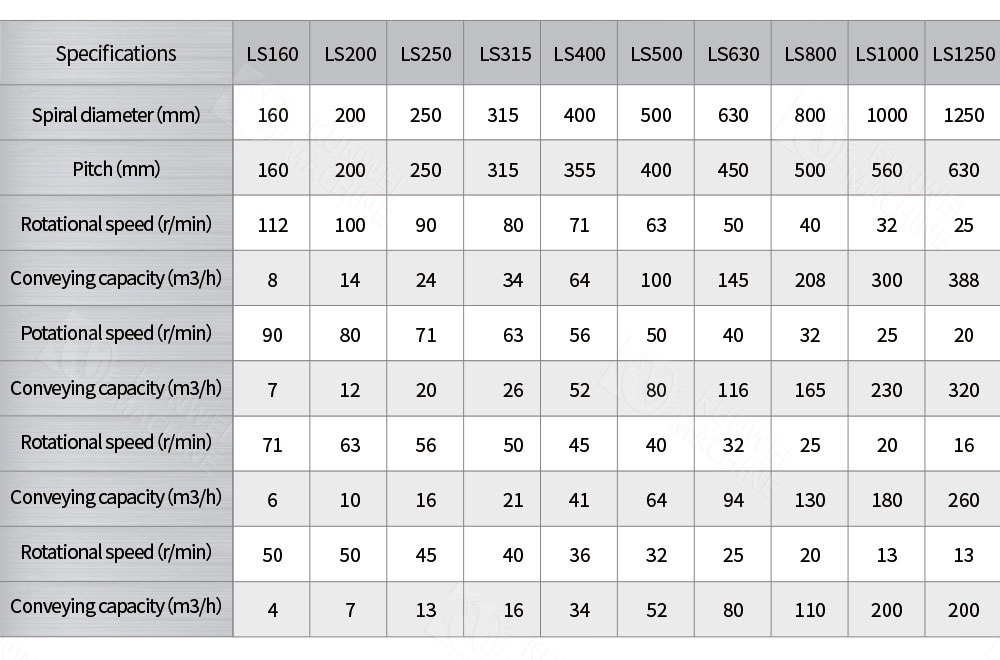

Fifth. Technical parameters of u-type screw conveyor:
