ls type screw conveyor

First, ls type screw conveyor product introduction: ls type screw conveyor is the updated product of gx type screw conveyor. ls screw conveyor is divided into two kinds of screw conveyor with shaft and screw conveyor without shaft according to whethe

hnkwjx@qq.com

First, ls type screw conveyor product introduction:

ls type screw conveyor is the updated product of gx type screw conveyor. ls screw conveyor is divided into two kinds of screw conveyor with shaft and screw conveyor without shaft according to whether there is a center shaft or not. Shafted screw conveyor consists of screw, U-shaped groove cover, inlet and outlet, and driving device; shaftless screw conveyor changes the screw into shaftless screw, and the U-shaped groove has replaceable liner, simple structure, material is inputted from inlet, and then outputted from outlet after being pushed by the screw. The whole transfer process can be carried out in a sealed groove, reducing noise and odor emission.

The head and tail bearings of ls type screw conveyor are moved to the outside of the shell, the hanging bearing adopts sliding bearing, there is no dustproof sealing device, the axle tile generally adopts powder metallurgy, the cement conveying adopts felt axle tile, the hanging axle and the screw shaft are connected by a slider, there is no need to move the driving device when dismantling the screw, and there is no need to move the screw when dismantling the hanging bearing, the hanging bearings can be lubricated without dismantling the cover plate.

Henan Kunwei Machinery in accordance with JB/T7679-95 “Screw Conveyor” standard design, manufacture and production of ls-type screw conveyor, high reliability, long life, adaptability, easy installation and maintenance.

Second, ls type screw conveyor product features advantages:

1, ls type screw conveyor bearing capacity, safe and reliable.

2,Strong adaptability, easy installation and maintenance, long life.

3,Small size of the whole machine, high speed, to ensure fast and uniform transportation.

4,The discharge end is equipped with a cleaning device, low noise, strong adaptability, flexible inlet and outlet position.

5,Good sealing, the shell is made of seamless steel pipe, and the ends are connected with each other by flanges, which has good rigidity.

Third, ls type screw conveyor applicable scope:

ls type screw conveyor is suitable for horizontal or inclined conveying powdery, granular and small lump materials, such as coal, ash, slag, cement, etc., the material temperature is less than 200 degrees Celsius, LS type screw conveyor conveying capacity, stable transportation, not easy to jam, conveying uniformity, is widely used in the chemical industry, building materials, metallurgy, mining, electric power and other departments. ls type screw conveyor is not suitable for conveying perishable, viscous, easy to caking materials. It is not suitable for conveying easily deteriorated, viscous and lumpy materials.

Fourth, ls type screw conveyor structure:

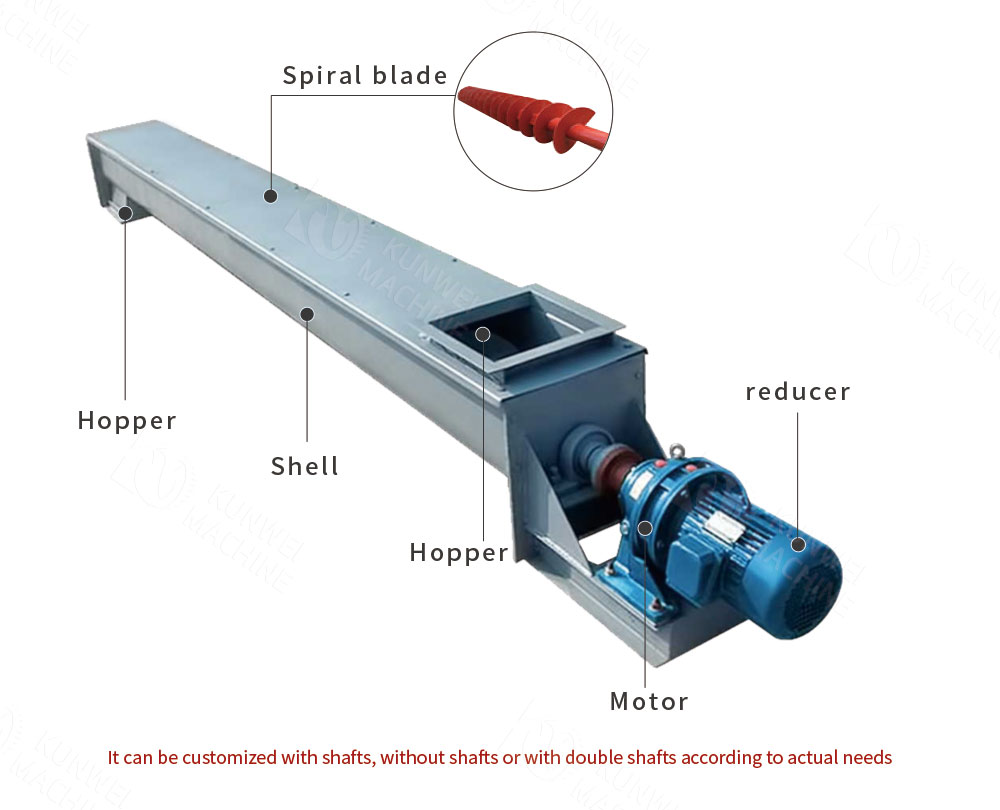

Type ls screw conveyor consists of three parts: screw machine body, inlet and outlet and driving device. Screw machine body consists of head bearing, tail bearing, suspension bearing, screw, shell, cover and base. The driving device consists of motor, reducer, coupling and base.
