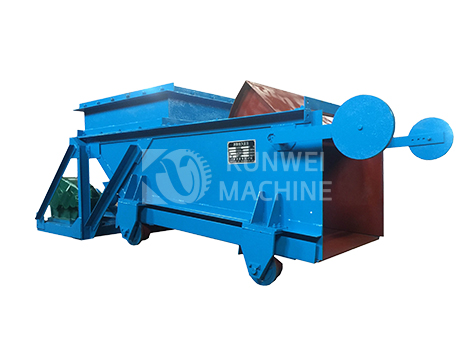

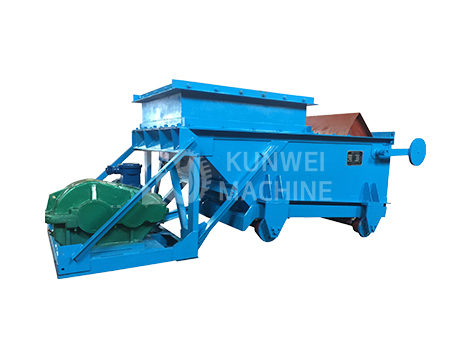

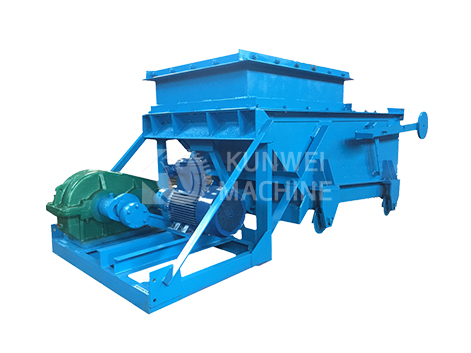

K type reciprocating feeder

First. k type reciprocating feeder product introduction:

K type reciprocating feeder is a kind of feeding equipment commonly used in coal mine transportation and coal beneficiation system, which is composed of frame, bottom plate (feeding chute) drive platform, funnel gate, rollers and so on. It is the use of crank-linkage mechanism to drag the downward tilted 5° bottom plate on the roller to do linear reciprocating motion, the motor through the coupling to drive the reducer, the reducer output shaft drives the crank-linkage mechanism, the crank-linkage mechanism drives the feed plate for reciprocating motion, the coal will be given from the warehouse. Thus the coal or other abrasive small, viscous loose granular, powdery materials from the feeding equipment is uniformly discharged to the receiving equipment.K-type reciprocating feeder according to the size of the feeding volume can be divided into: K1, K2, K3, K4 and so on several models.

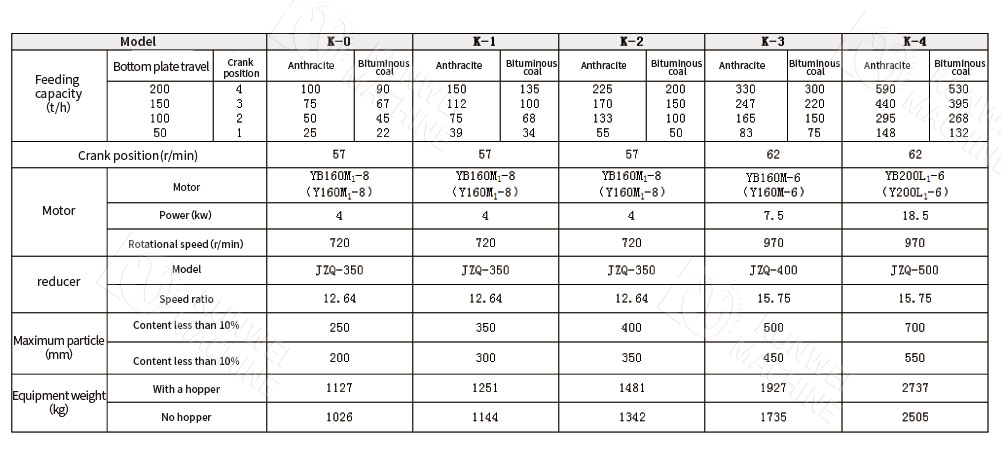

Second. k type reciprocating feeder main features:

1、Simple structure, reliable operation, convenient adjustment and installation.

2、Fitted with moment-limiting hydraulic coupling, it can be started at full load and protected from overload;

3、Light weight, small volume, reliable operation, long life, easy maintenance.

4、Maximum feeding capacity is up to 1200 tons/hour (coal), which is the largest reciprocating feeder in China.

5、Advanced planar secondary envelope ring mule bar reducer design, large load capacity, high transmission efficiency.

6, side liner, slant liner and the bottom plate between the gap adjustable, can be more accurately control the size of the gap, greatly reducing the leakage of material.

7, symmetrical arrangement of the drive device, and the use of double push rod, so that the whole machine love force balance, smooth transmission, eliminating the bottom plate reciprocating when the twisting phenomenon.

8、The bottom plate has vertical rib plate and is supported by three through-length rollers, which ensures the rigidity of the bottom plate itself and eliminates the disadvantage of bending and deformation of the bottom plate of the existing reciprocating feeder; 9、The liner plate is made of small pieces of durable material, and the liner plate is made of small pieces of durable material.

9、The liner plate is made of small wear-resistant steel plate, so it is not only light and easy to replace, but also can be targeted to replace the worn liner plate according to the actual wear situation, so as to make reasonable use of materials and reduce the maintenance cost.

Third. k type reciprocating feeder working principle:

The transmission principle: when the motor is on, the elastic coupling, reducer, crank connecting Xuan mechanism drags the inclined bottom plate in the insertion roller for linear reciprocating motion, the coal will be uniformly unloaded to the transportation machinery or other screening equipment. k-type reciprocating feeder with hopper, with regulating valves and without hopper, without regulating valves in two forms. This machine is suitable for mines and coal preparation plants, loading coal evenly into conveyor or other screening and storage devices through coal bunker.

Fourth.k type reciprocating feeder application field:

K-type reciprocating feeder is suitable for bulk material transfer in mines, coal processing plants, transfer stations, coal conveyor workshops, bulk wharves, etc. It can transfer the bulk material evenly to the belt conveyor or vibrating screening equipment, storage devices and other devices through the silo or directly with the use of the silo. Realize the uniform feeding of bulk materials such as ore, coal, sand and gravel.
