Maximizing ROI: Open Type Large Inclination Belt Conveyor Price and Performance for Quarries

In heavy-duty quarrying and stone crushing operations, the open type large inclination belt conveyor price is often the first concern for procurement managers. However, the true cost of ownership is defined by how well the system withstands the relentless abrasion of crushed stone. Standard conveyors often fail under the weight of heavy aggregates, leading to frequent belt slippage and structural deformation. At Kunwei Machine, we’ve engineered our DJ Series open-type conveyors to solve the dual challenge of budget constraints and high-intensity maintenance, providing a robust vertical lifting solution that prioritizes structural longevity and ease of inspection.

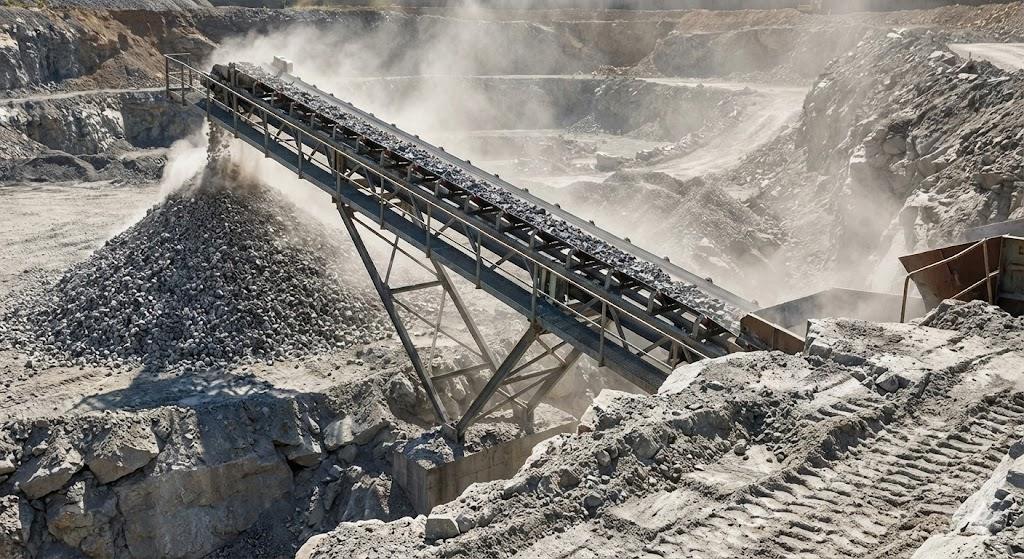

open type large inclination belt conveyor

Heavy-Duty Applications in Aggregate Processing

Primary Crusher Discharge: Efficiently move large-size crushed stone from primary crushers to secondary screening stations at steep angles, drastically reducing the required site footprint.
Stockpiling in Limited Spaces: Create higher, more compact stockpiles of gravel and sand by utilizing vertical lifting capabilities up to 90 degrees.
Mobile Crushing Plant Integration: Our modular open-frame design allows for seamless integration into portable crushing units, where visual access for rapid maintenance is critical.

By opting for an open-type sidewall design, quarry operators can eliminate the “blind spots” found in enclosed systems. This is particularly effective for abrasive materials like crushed granite or basalt, where the ability to spot early wear on the base belt or cleats can prevent a catastrophic mid-shift failure.

DJ Series Open-Type Technical Specifications

Parameter	Heavy-Duty Configuration
Belt Width (mm)	650mm – 1400mm
Max Material Size	Up to 150mm (Aggregate Dependent)
Inclination Angle	30° to 90° Vertical
Frame Material	Reinforced Q235B Carbon Steel

The open type large inclination belt conveyor price reflects the engineering integrity of the steel frame. Our DJ Series uses a high-torsional-rigidity lattice structure that prevents the frame from twisting under the asymmetric loads common in vertical stone transport.

Engineering Resilience: Impact-Resistant Compounds and Rigid Framing

When handling high-abrasion crushed stone, the choice of rubber compound is the difference between a belt that lasts 6 months and one that lasts 3 years. We utilize high-tensile base belts with cross-rigid reinforcement to prevent “cupping” during the return run. Furthermore, our integral hot vulcanization process ensures that the cleats and sidewalls are molecularly fused to the base belt. In the high-impact environment of a quarry, cold-bonded cleats will eventually shear off; our hot-vulcanized system absorbs the kinetic energy of falling stones without delamination.

Modular Options for Quarrying Environments

Impact Idler Beds: Specialized heavy-duty loading zones to protect the belt from large aggregate impact.
Non-Powered Rotary Brush Cleaners: Essential for removing fines from the cleat pockets, preventing material carry-back.
Wear-Resistant Ceramic Liners: For intake and discharge chutes to prolong the life of the steel housing.

Field-Proven Stability in High-Wear Sites

Expert Quality Check: Validating Heavy-Duty Performance

A leading aggregate supplier in Southeast Asia reduced their annual maintenance budget by 22% after switching to our open-type sidewall units. To ensure you are getting a heavy-duty machine and not a light-duty substitute, follow these Kunwei Engineering tips:

Check Frame Weight: Compare the steel frame weight (kg/m). A professional heavy-duty conveyor should not compromise on steel thickness; a lighter frame will vibrate excessively and shorten the belt life.
Inspect Cleat Rigidity: Press against the cleats to test for lateral stiffness. For stone handling, cleats must have sufficient rigidity to prevent bending under load, which causes material fallback.
Verify Vulcanization Quality: Inspect the seam where the sidewall meets the belt; it should be seamless and smooth, indicating a professional hot vulcanization process.

Seeking the best open type large inclination belt conveyor price without sacrificing durability? Visit our Belt Conveyor Solutions hub to consult with a Kunwei engineer today.
